3D SLM METAL PRINTERS

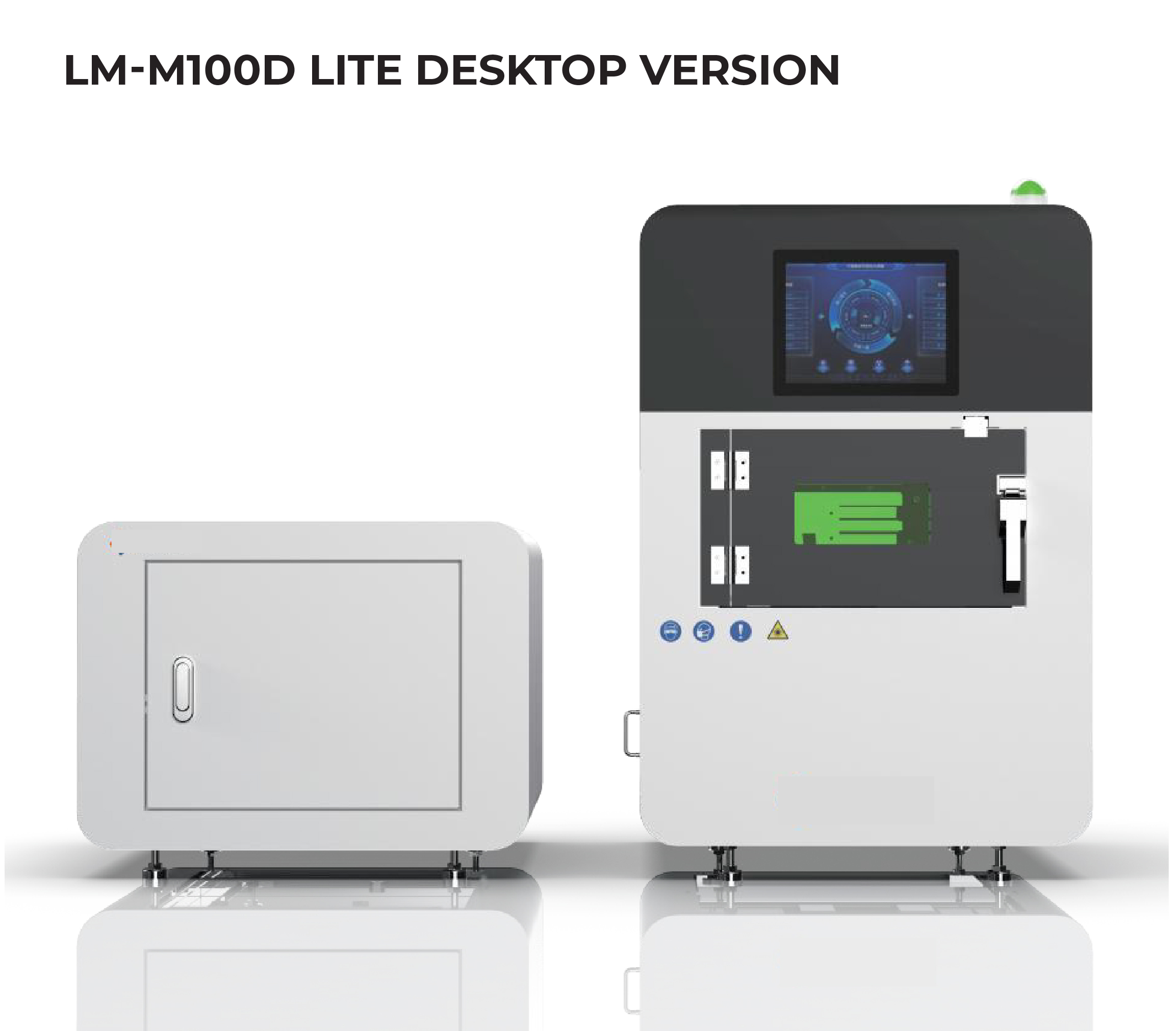

LM-MI100D LITE & LM-MIOOD, 3D SLM DESKTOP DENTAL METAL SLM PRINTERS

Machine come with the supporting system:

  • Supports up to 100 slicing parameter profiles to meet diverse case requirements.
  • Smart multi-core slicing and error-repair technology ensure stable printing even with flawed models.
  • Supports up to 100 slicing parameter configurations to meet diverse and customized needs.
  • Stable Optics & Powder Recycling System: Ensures reliability for batch production, maintaining consistent quality.
  • Ultra-Fine Laser Spot: Produces sharper layer edges, accurately capturing fine dental details like crown margins — and inner cavities.
  • High-Precision Control System: Delivers outstanding accuracy for intricate dental restorations.
  • Compact, Space-Saving Design
  • Slimmer machine body with shortened powder-spreading travel and inflation time—no more waiting for operators. Fixed build platform eliminates manual leveling. All moving parts are enclosed for easy cleaning.
LM-M100LM-M100 LITE
Dimension70×70×130cm55×55×80cm
Build VolumeΦ120×100mm / Φ100×80mmΦ100×50mm (80mm print height optional)
Laser Power300W300W
Density/liquid resin20-60µm20-60µm
Layer Thickness50×50×65cm50×50×65cm
Powder Feeding MethodParallel Cylinder Powder FeedingParallel Cylinder Powder Feeding
Scanning Speed7m/s7m/s
Control SystemsTH-3D print/Tianhong CustomizationTH-3D print/Tianhong Customization
Electrical Consumption220V220V
Weight180Kg150Kg
Applicable MaterialsTitanium alloy, Cobalt-chromium, Stanless Steel

TH-M150: SMALL-SIZED METAL ADDITIVE MANUFACTURING EQUIPMENT

TH-M150 adopts metal powder bed melting technology, the forming chamber can reach
153*153*120mm%, single laser or dual laser printing mode, can print titanium alloy, high temperature nickel-based alloy, mold steel, stainless steel, cobalt chromium molybdenum and other materials, suitable for medical, hand plate, scientific research and education, material verification and personalized customization and other fields.

TH-150
DimensionL960×W730×H1788 mm³
Forming Cylinder Size153×153×120mm
Scanning Speed7m/s
Light Spot Diameter50–100µm
Powder Layering Thickness20–120µm
Forming SpeedMax 20cm³/h
Chamber Oxygen Level≤100ppm
Light Source200W
Electrical Consumption380V, 4.1KW
Weight0.8T
MaterialsTitanium alloy, Cobalt-chromium, Stanless Steel, High-strength steel, die sttel, etc

TH-M280: MEDIUM-SIZED METAL ADDITIVE MANUFACTURING EQUIPMENT

TH-280
DimensionL(2536)×W(1270)×H(2230)mm³
Forming Cylinder Size286mm×286mm×380mm
Scanning Speed7m/s
Light Spot Diameter50~120µm
Powder Layering Thickness20~120µm
Forming SpeedMax 35cm³/h
Chamber Oxygen Level≤100ppm
Light Source500W
Electrical Consumption380V, 4.1KW
Weight2.1T
MaterialsTitanium alloy, Cobalt-chromium, Stanless Steel, High-strength steel, die sttel, etc

TH-M400: HIGH-QUALITY METAL ADDITIVE MANUFACTURING EQUIPMENT

TH-M400 adopts metal powder bed melting technology, the forming chamber can reach
406*406*450mm.. There are single laser, dual laser, four laser three configurations to choose from, efficient and stable powder supply system, can print titanium alloy, aluminum alloy, high-temperature nickel-based alloys, die steel, stainless steel, cobalt-chromium-molybdenum and other materials to meet the needs of high-efficiency, high-strength, high-quality, sustainable production, applicable to the aerospace, mold, medical equipment, automotive parts and other fields of large size, high precision, high performance parts direct manufacturing. It is suitable for the direct manufacturing of large-size, high-precision and high-performance parts in the fields of aerospace, molds, medical equipment and automotive parts.

TH-400
DimensionL(2960)×W(1270)×H(2500)mm³
Forming Cylinder Size406mm×406mm×450mm
Scanning Speed4×7m/s
Light Spot Diameter70~120µm
Powder Layering Thickness20~120µm
Forming SpeedMax140cm³/h (four lasers)
Chamber Oxygen Level≤100ppm
Light Source4×500W
Electrical Consumption380V, 34KW
Weight4.2T
MaterialsTitanium alloy, Cobalt-chromium, Stanless Steel, High-strength steel, die sttel, etc
